YGL-135B Crawler Anchor Drilling Machine
- Product images
- Product description
-
-

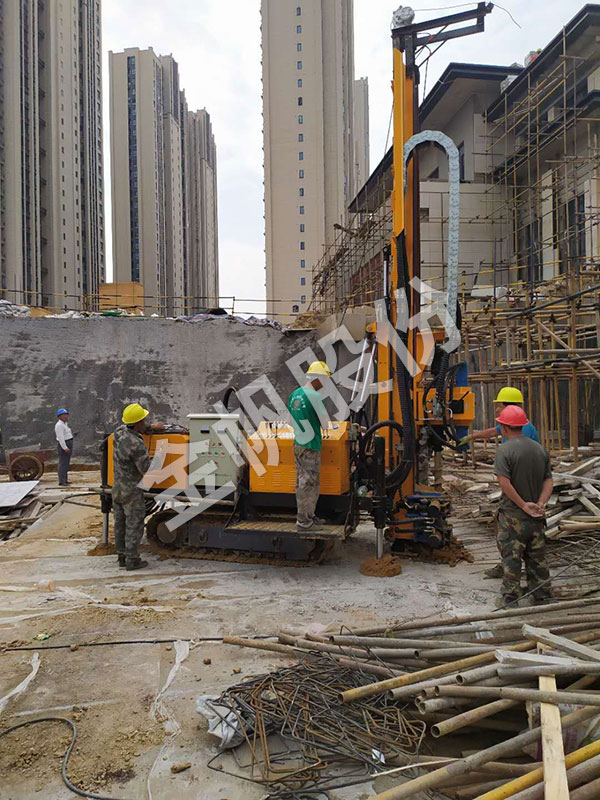

IntroductionThe YGL-135B tracked engineering drilling rig is a tracked chassis loading, fully hydraulic driven, and power head drilling rig Mainly suitable for the construction of deep foundation pit anchoring in high-rise buildings, and also suitable for the construction of large tonnage prestressed anchoring holes and drainage holes in geotechnical engineering such as water electricity station engineering, railway, highway slopes, etc; Construction of high-pressure rotary jet grouting guide holes and blasting holes in gravel formations. It can also be applied to anti floating anchoring, indoor building foundation reinforcement, rotary spraying reinforcement, roadbed and dam foundation reinforcement, landslide prevention anchoring, open-air quarrying blasting holes and other engineering projects.
Technical Parameter
|
Model(m)
|
YGL-135B
|
|
Borehole depth(m)
|
130
|
|
Borehole diameter(mm)
|
Ф110～300
|
|
Drill pipe inclination angle(mm)
|
10~90°
|
|
Horizontal hole height(m)
|
|
|
Output speed rpm
|
25/50;40/80
45/90;70/140
|
|
High output torque Nm
|
7500
|
|
Provide progress mm
|
3500
|
|
Large feeding/pulling force kN
|
40/60
|
|
Power machine model
|
Firewood
|
|
|
Electricity
|
Y225M-4/Y180L-4
|
|
Input power
|
Firewood
|
|
|
Electricity
|
45+22
|
|
Chassis Model
|
PD135SS
|
|
Overall Dimension(m)
|
6300*2000*2500
|
|
Drill weight(kg)
|
6000
|
